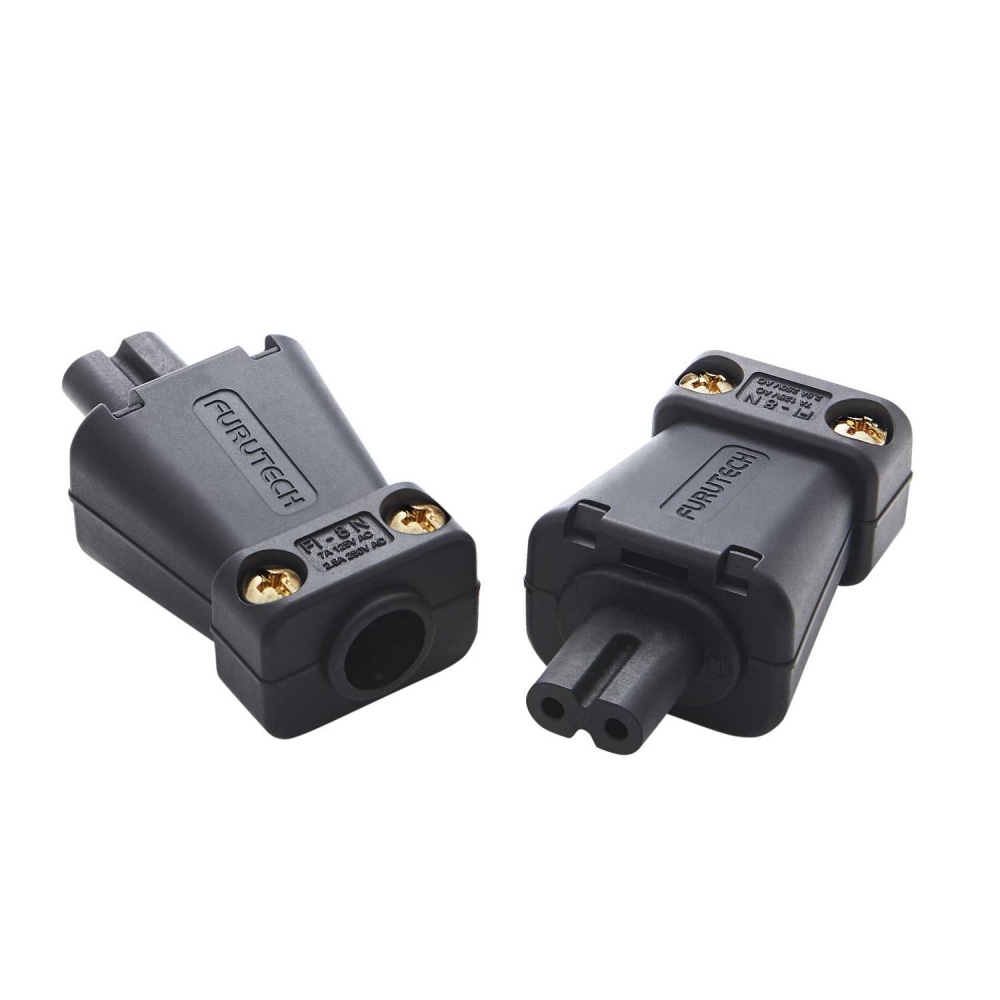

Furutech - IEC Connector - FI-8N(G)

RATING
Set screw type
7A/125V 2.5A/250V

FEATURES
・Furutech’s unique female conductor design features α (Alpha) Beryllium copper and Phosphor Bronze conductors
・Material : Nylon/ fiber glass body/caver and polycarbonate cable clamp.

SPECIFICATIONS
・Specified for cable outer diameters of 6.0mm ~ 13.0mm
・Wire accommodation : Max. 2.4mm dia.(Solid core) // 2.0 Sq.mm/14AWG (Strand wire)
・Connections : Set screw
・Dimensions : 36.8mm x 28.2mm x 71.0 mm ± 0.5mm overall length
・Rated : 7A/125V 2.5A/250V
