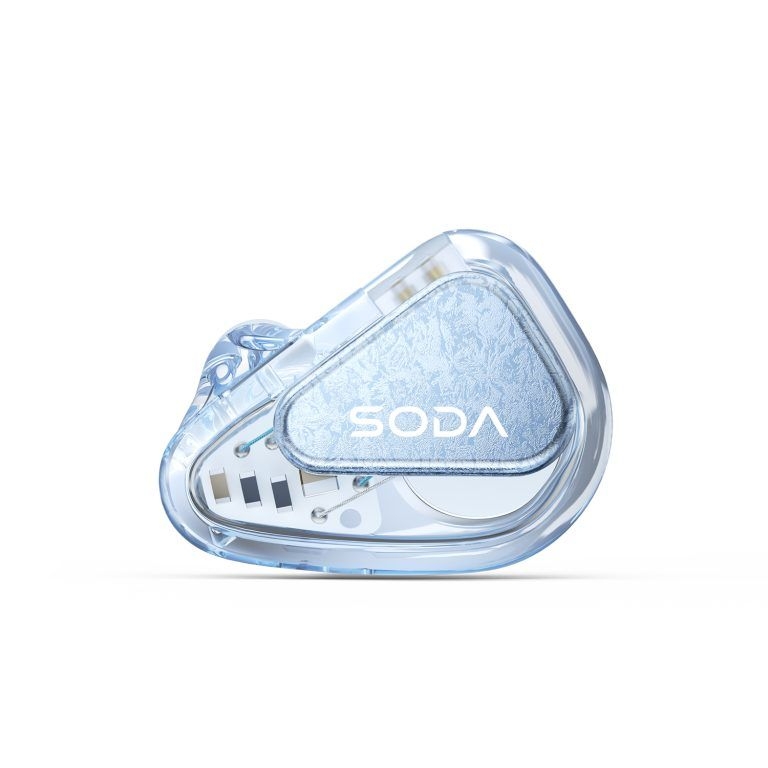

Tanchjim - Soda - In-Ear Monitors

Key Features:



Advanced Hybrid Driver System

- Multi-Driver Array : Combines a 10mm DMT5 dynamic driver with four PURE series balanced armature drivers and two SS Silk System passive radiators per side

- Engineered Sound Distribution : The DMT5 dynamic driver provides deep, fast bass; two BA drivers handle crisp midrange; and another two BA drivers manage smooth treble

- Proprietary HPFD-Seg 3-Way Crossover : Features a custom high-precision crossover that ensures seamless phase alignment and consistent group delay for excellent transient response



Reference-Grade Sound Tuning

- Balanced & Transparent : Tuned for objective accuracy, delivering a clean, detailed, and well-balanced sound without artificial coloration or fatigue

- Extended Frequency Response : Covers a wide range from 8Hz to 48kHz

- High-Frequency Refinement : The proprietary Silk System SS passive radiators are specifically tuned to smooth and refine the 16kHz-23kHz range for a more natural, open treble



All-Day Ergonomic Comfort

- Pressure-Relief Acoustic Design : Incorporates a patented internal air vent and comes with T-APB pressure-balancing ear tips to significantly reduce ear drum pressure and prevent discomfort during long listening sessions

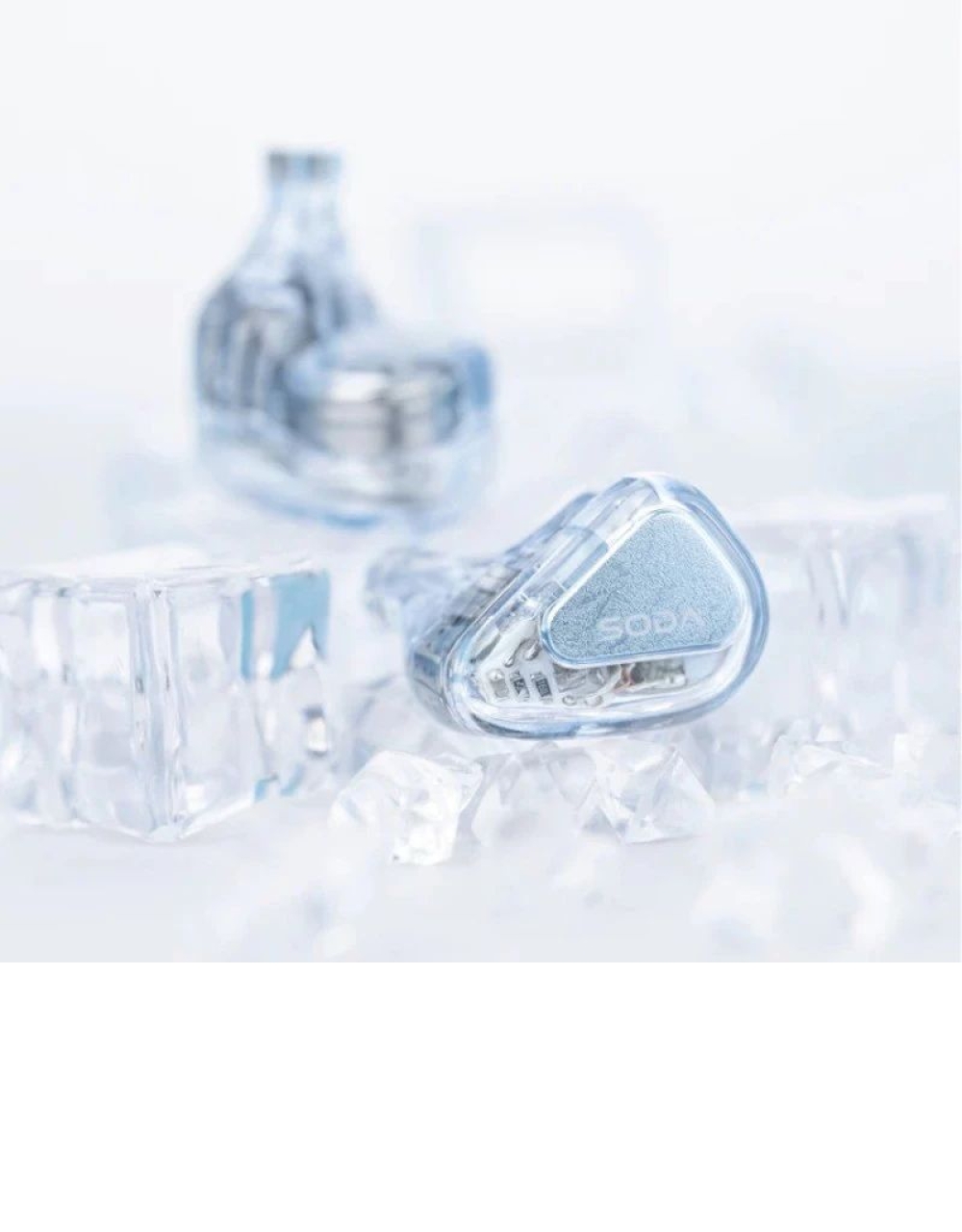

- Precision 3D-Printed Shells : The ergonomic shells are crafted using high-precision DLP 3D printing for a secure, comfortable fit



Modular Cable System

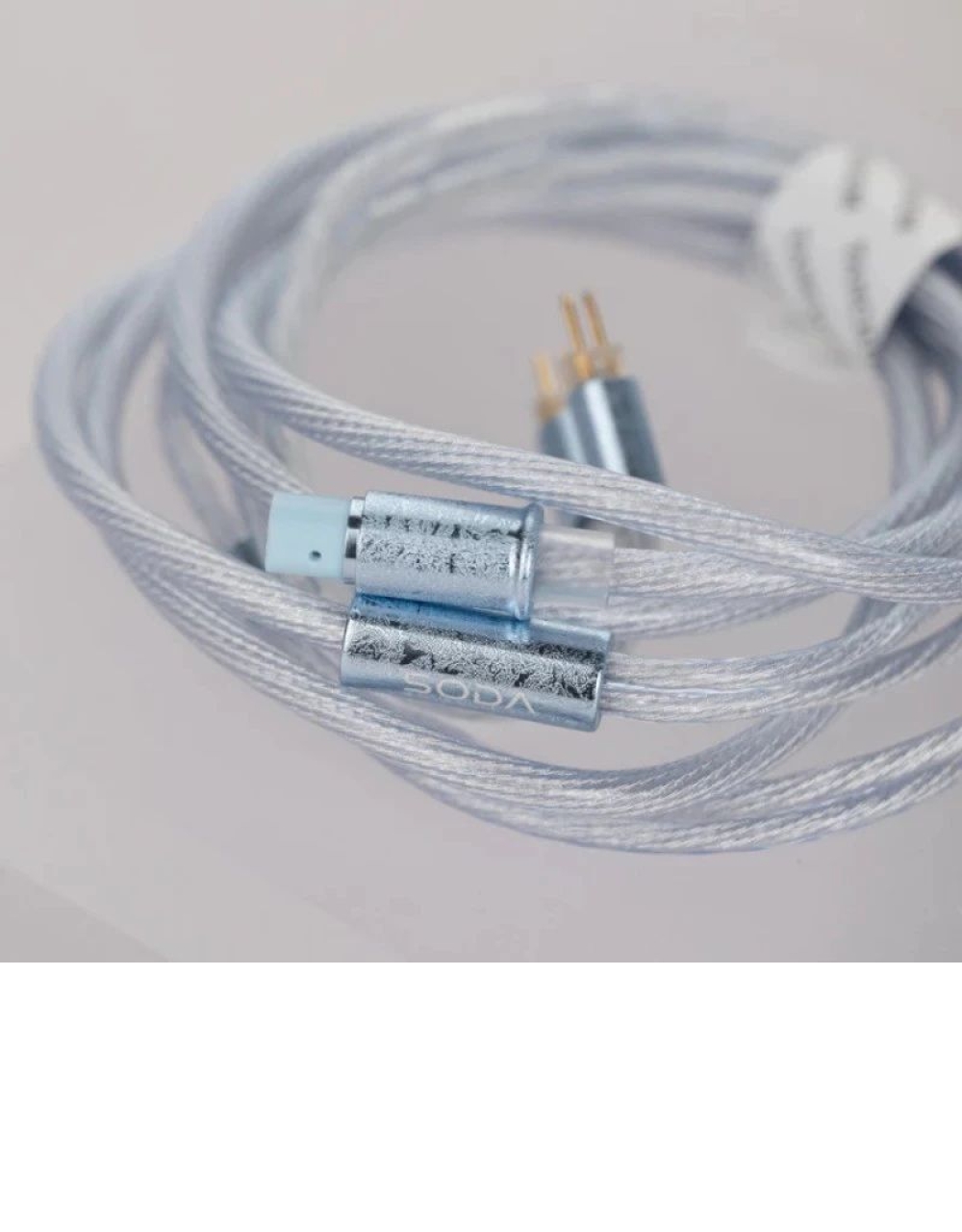

- Versatile Swappable Plugs : Includes a high-purity silver-plated copper Litz cable with a swappable termination plug system, offering both 3.5mm single-ended and 4.4mm balanced outputs in the box



Technical Specifications :

- Driver Configuration : 10mm DMT5 DD + 4 PURE BA + 2 SS Passive Units

- Frequency Response : 8Hz – 48kHz

- Impedance : 15.5Ω ±15%

- Sensitivity : 120dB/Vrms

- THD : ≤0.5% @1kHz

- Cable : Silver-Plated Copper Litz with swappable plugs

- Connector : 0.78mm 2-pin



Package Includes :

- Tanchjim Soda IEMs

- Detachable Cable with Swappable Plugs (3.5mm & 4.4mm included)

- T-APB Pressure-Balancing Ear Tips (6 pairs)

- Protective PVC Leather Case

- User Manual
